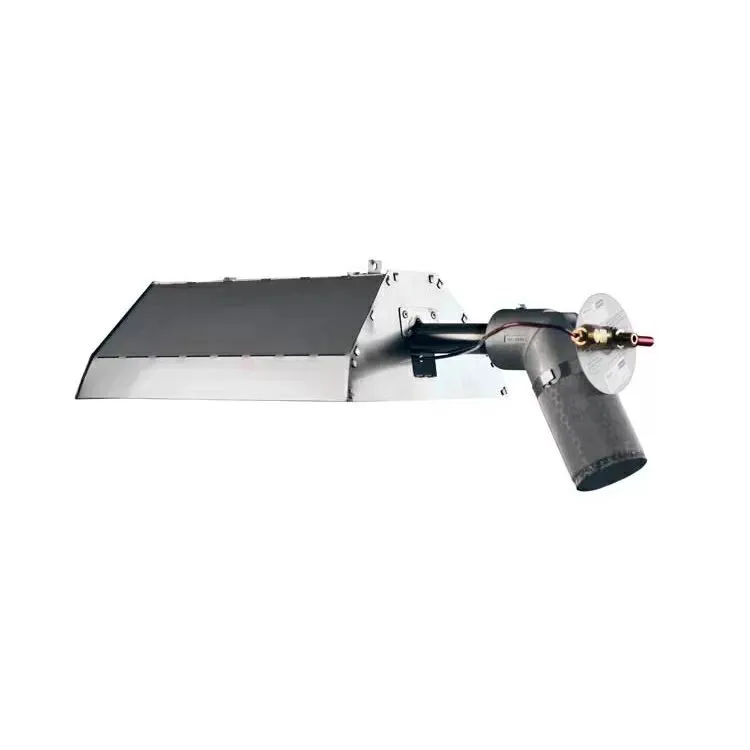

Get safe, reliable performance when you add H-17 High Pressure Radiant Brooders from LB White to your nursery or wean finish barns. They provide rugged durability that will stand up to years of safe, reliable use in harsh confinement environments due to high-temp stainless steel emitter elements, a corrosion-resistant stainless steel shroud and stove enameled venturi tubes.
Features
- Easy maintenance
- Few parts
- Stackable for storage
- Works well with all LB White Zone Panels
- Covers approximately 100 nursery/wean to finish pigs
| BTU/Hr Rating Max | 17,000 |
| Nursery/Wean to Finish Pigs Covered | 100 |
| Area Covered | 200-225 sq.ft. |
| Installation Height | 4-5 ft |
| Manual Ignition | Yes |
| Max Liquid Propane Fuel Consumption | 0.79 lbs/hr |
| Max Natural Gas Fuel Consumption | 17 cu. ft./hr |
| Inlet Gas Supply Pressure - NG or LP | 5 psig |
| Ventilation | 200 CFM |
| Min Clearance to Combustibles Top | 3' |
| Min Clearance to Combustibles Side | 3' |
| Min Clearance to Combustibles Bottom | 3.5' |
| Height w/Filter | 7.25" |
| Reflector Dimensions | 12" x 8.25" x 4.25" |
| Net Weight | 3.75 lbs |
| Inlet Air Filter | Included |
