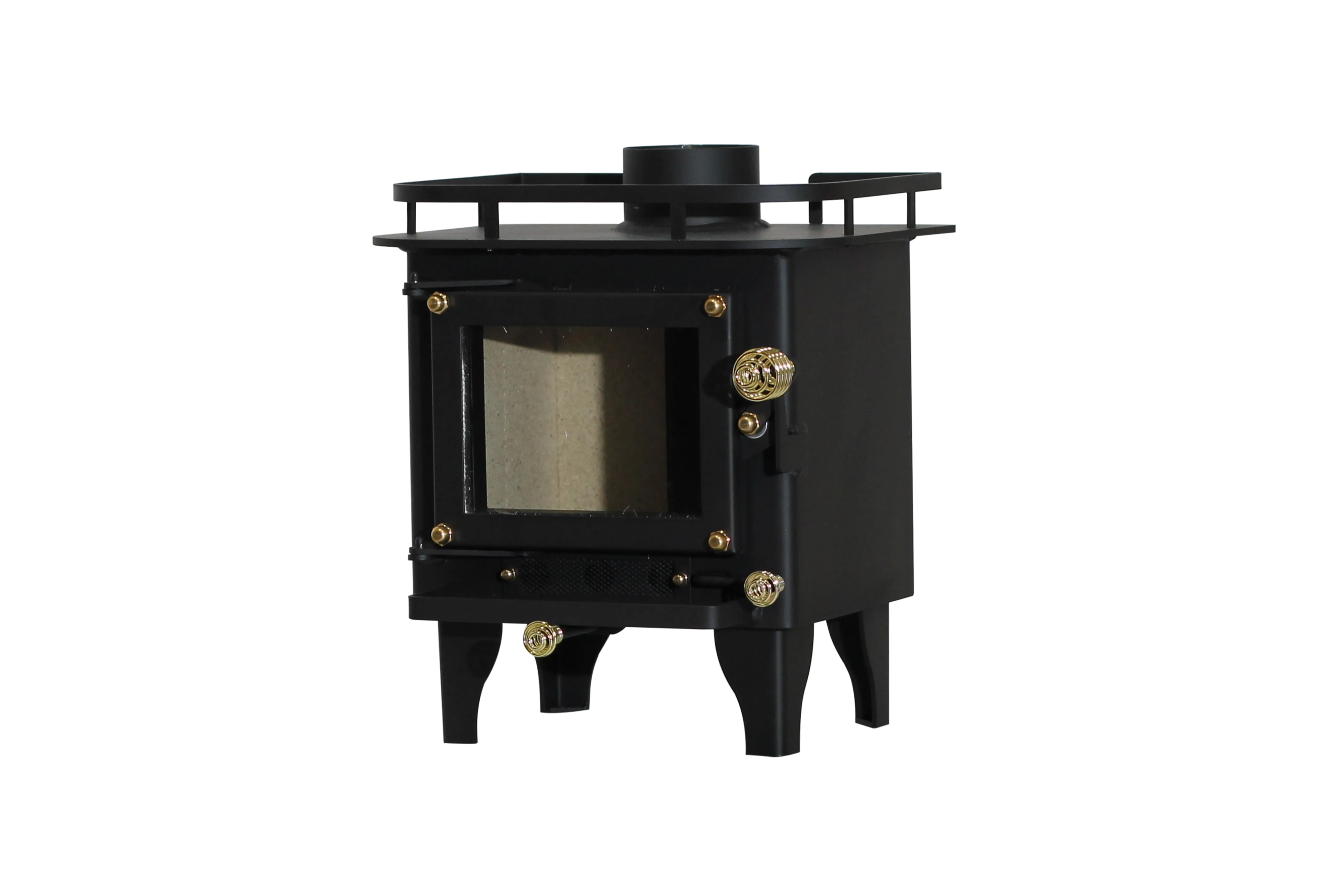

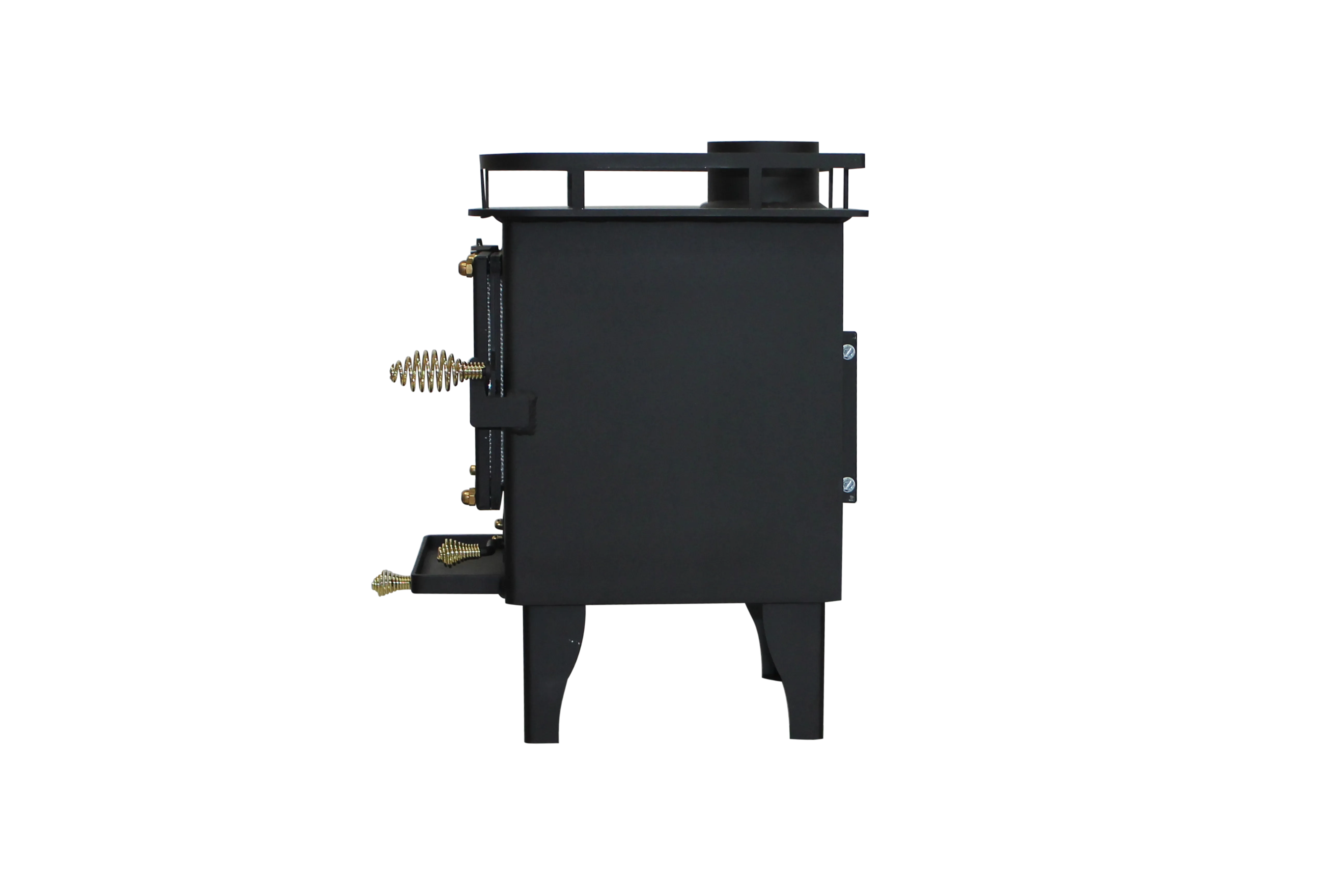

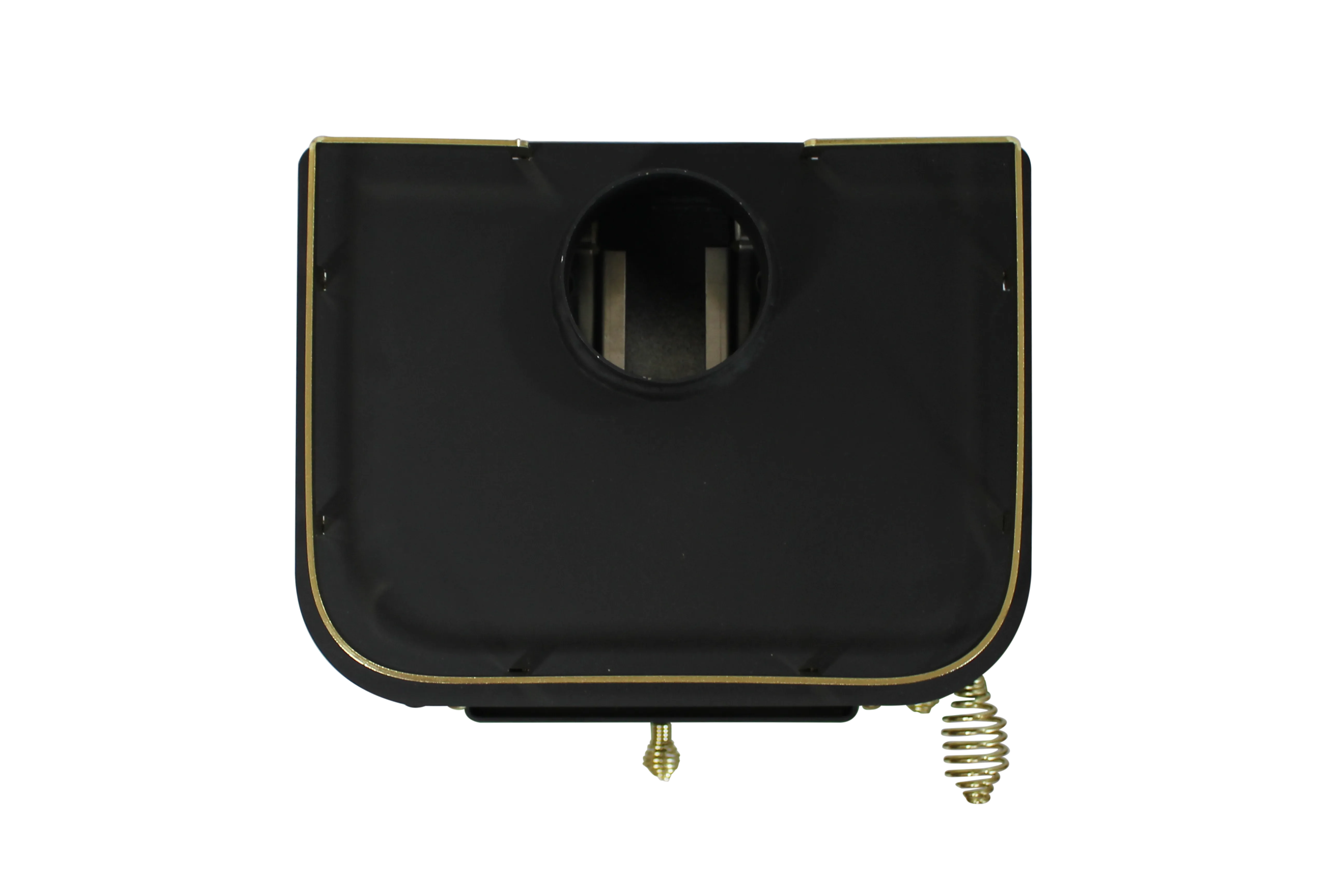

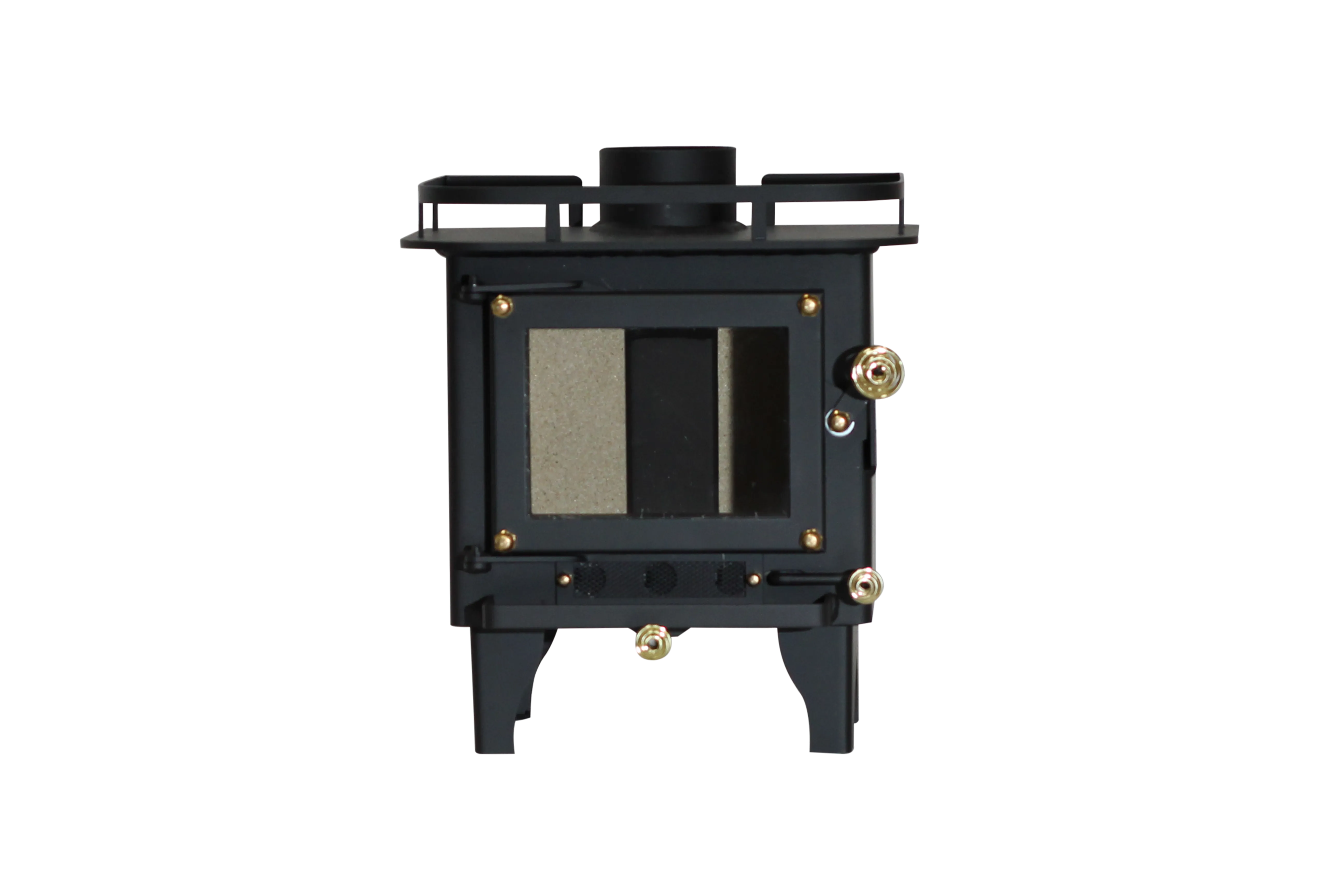

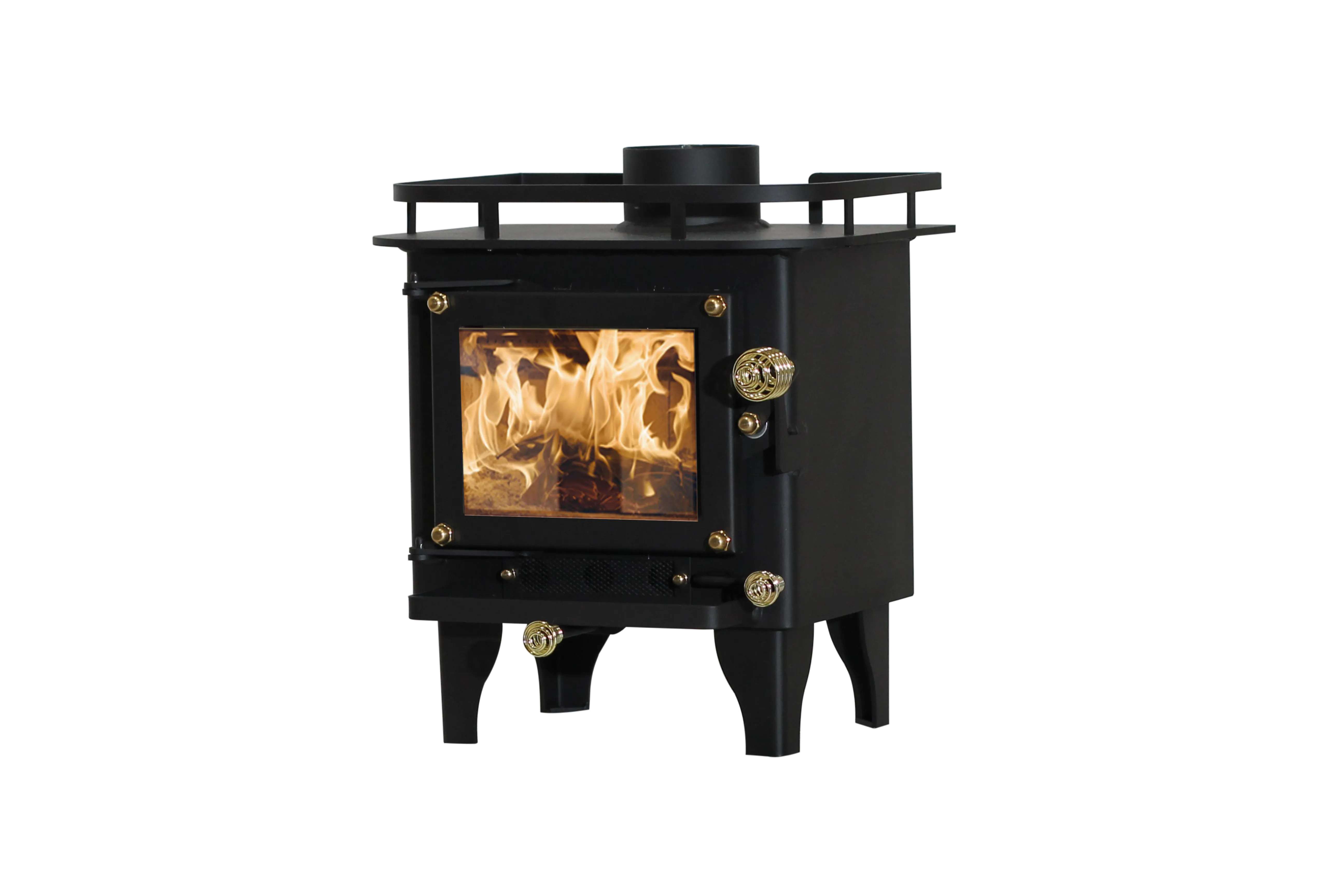

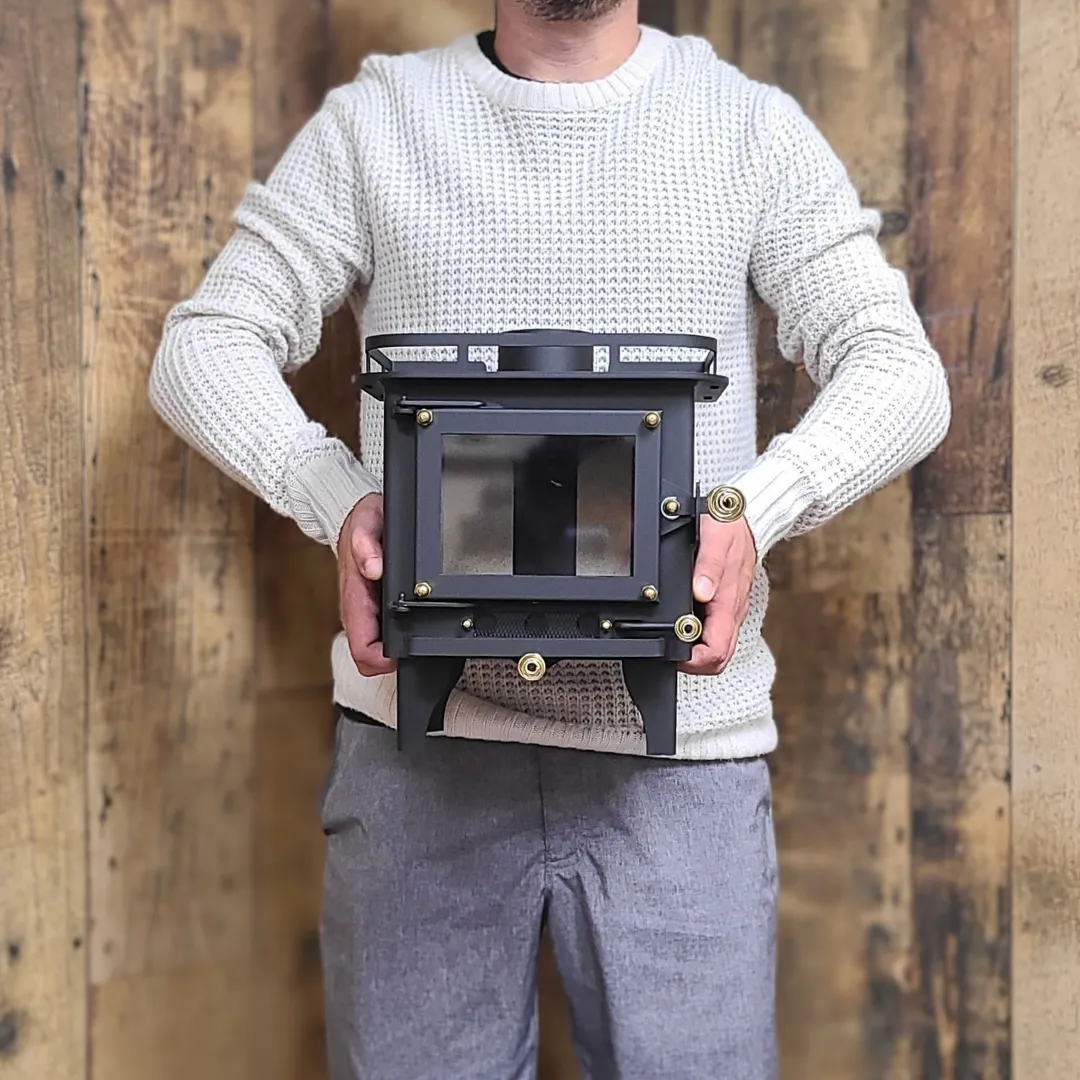

The Cub Wood Stove is Cubic Mini’s first wood burning stove. It's birth was inspired by one too many cold, damp nights in a boat. Our Cubic Mini creator built this stove to solve humidity issues in his boat. Since then, friends quickly noticed the value of this little jewel. The Cub is our smallest stove and is ideal for a tiny home on wheels or even a boat. This little stove performs its best when it is installed in an area under 200 square feet during Spring and Fall months. Looking to heat somewhere with taller ceilings during the colder Winter months? Check out our .
Features
- Easy to install and easy to operate!
- Eco-friendly
- Produces very little smoke due to its secondary combustion system!
- Much safer than a diesel or propane cook stove!
- Removes humidity from the cabin.
- The rail is easily removable.

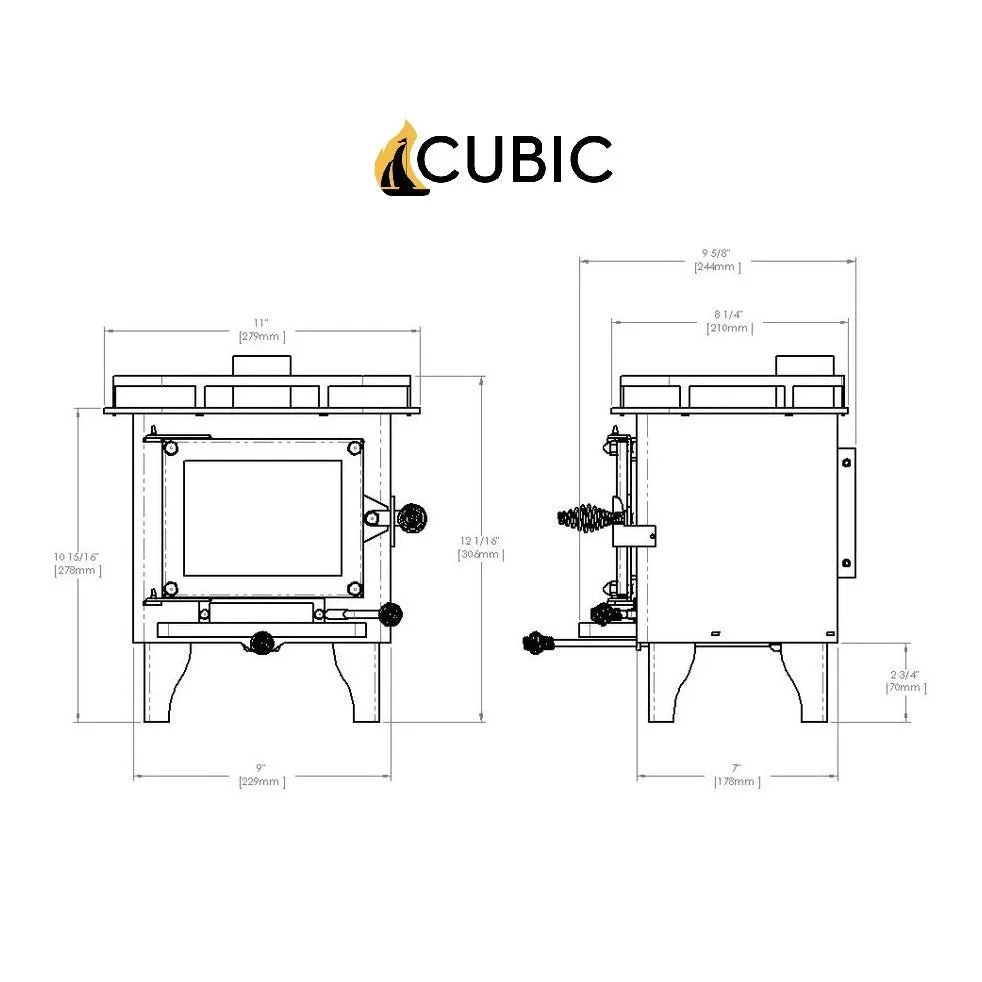

Dimensions/Weight
- 25lb
- Measures only 11" (Wide) x 12" (High) x 10.5" (Depth) ( 27.94 cm x 30.48 cm x 26.67 cm ).
- If you remove the rail, you have a cooking area of 5" ( 12.7 cm ) from the flue to the edge of the plate and 11" ( 27.94 cm ) side to side.
- Measurements for the interior firebox: 6" (Depth) x 7.375" (Wide) x 6.5" (Tall) (15.24 cm x 18.42 cm x 18.733 cm - 16.51 cm).
Fuel
- Well seasoned hardwood and pressed logs are the best fuels to burn.
- Ideally the wood should be cut to 5 3/4" ( 14.60 cm ) long. It could be cut slightly longer. However 5 3/4" ( 14.60 cm ) allows for good airflow around the sides and it does not damage the insulation on the inside.
Output
- 6000 BTU - 14, 000 BTU
- 1.75 - 4.1 KWh
Specifics
- Requires a horizontal clearance of 14" ( 35.56 cm ) on the sides and 16" ( 40.64 cm) at the front of the room heater, without shielding and a vertical clearance of 40" ( 101.6 cm ).
- Underside of stove must be shielded at all times.
- Clearances reduced to 3" ( 7.62 cm ) when using proper mounting and shielding.
- The stove needs a complete flue system comprising of 3"(7.62 cm) flue pipe, 5"(12.7 cm) insulated pipe and exit kit NOT INCLUDED
Material
- 3/16" laser cut steel top plate.
- 1/8" laser cut steel body.
- 1/2" thick vermiculate firebrick insulation.
- 3/16" thick self cleaning robax glass.
- Brass plated coil handles.
